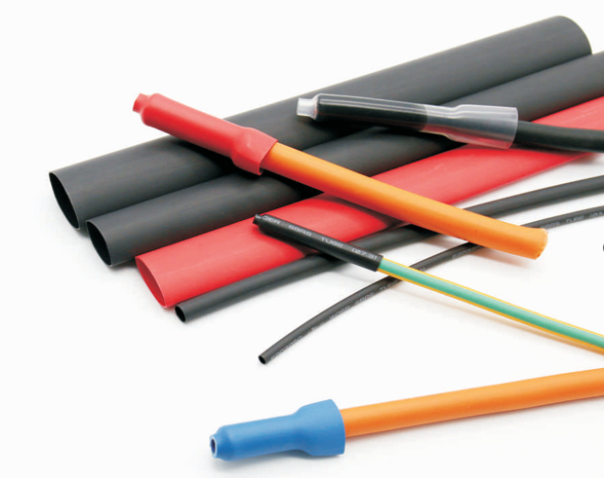

DWT-3X

Universal 3:1 Adhesive-lined Heat Shrink Tubing

Material: Polyolefin and hot-melt adhesive

Features:

· 3:1 shrink ratio
· Low longitudinal shrinkage
· Flame retardant (outjacket only)
· Super sealing against water, moisture or other contaminates
· Continuous operating temperature: -45℃-125℃
· Shrink Temperature:125℃

Technical Data

Property	Test Method	Typical Performance
Tensile strength	ASTM D 2671	≥12MPa
Ultimate elongation	ASTM D 2671	≥300%
Tensile strength after aging	158℃×168h	≥8.4MPa
Ultimate elongation after aging	158℃×168h	≥100%
Dielectric strength	ASTM D 149	≥15kV/mm
Volume resistivity	ASTM D 876	≥1014Ω·cm

Product Dimensions

Size		As supplied	After recovery （mm）			Standard Packing
Inch	mm	Inner Diameter Min(mm)	Inner Diameter Max	Total Wall Thickness	Wall Thickness of Adhesive
3/32	2.4	2.4	0.8	0.80±0.30	0.40±0.20	200m/Spool
1/8	3.2	3.2	1	0.90±0.30	0.40±0.20	200m/Spool
3/16	4.8	4.8	1.6	1.05±0.30	0.40±0.20	100m/Spool
1/4	6.4	6.4	2.2	1.25±0.30	0.45±0.20	100m/Spool
5/16	7.9	7.9	2.7	1.35±0.30	0.50±0.20	100m/Spool
3/8	9.5	9.5	3.2	1.45±0.30	0.50±0.20	50m/Spool
1/2	12.7	12.7	4.2	1.65±0.30	0.50±0.20	1.22 or 25m/roll
5/8	15	15	5.2	1.80±0.30	0.55±0.30	1.22 or 25m/roll
3/4	19.1	19.1	6.3	1.95±0.30	0.60±0.30	1.22 or 25m/roll
1	25.4	25.4	8.5	2.00±0.40	0.60±0.30	1.22 or 25m/roll
1 1/4	30	30	10.2	2.15±0.40	0.65±0.30	1.22 or 25m/roll
1 1/2	39	39	13.5	2.45±0.40	0.60±0.30	1.22 or 25m/roll
2	50	50	17	2.75±0.40	0.75±0.30	1.22 or 25m/roll
2 1/2	64	64	21	3.05±0.40	0.80±0.30	1.22 or 25m/roll
3	75	75	25	3.05±0.40	1.05±0.40	1.22 or 25m/roll
3 1/2	90	90	30	3.10±0.50	1.05±0.40	1.22 or 25m/roll
4	100	100	34	3.10±0.50	1.05±0.40	1.22 or 25m/roll
