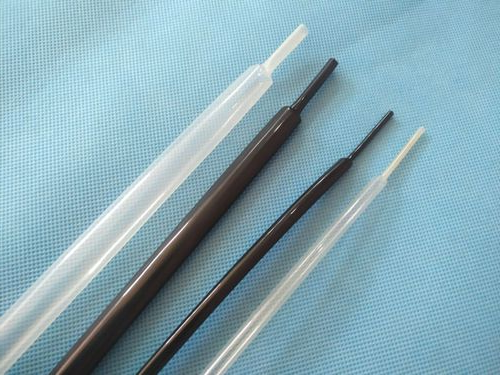

PVDF 175℃ 2:1 Heat Shrink Tubing
Material: PVDF
Application:
Insulation protection for wire harnesses, terminals, welding heads and terminals, where need continuous operating temperatures ranging from -55°C to 175°C, such as in aerospace, radar systems, locomotive equipment, and insulation and stress buffering for industrial busbar joints.
Features:
· Outstanding high-temperature resistance, chemical corrosion resistance and wear resistance.
· Flexible, flame-retardant (VW-1)
· Operating temperature range: -55℃~175℃
· Minimal shrink temperature: 155℃
· Rating voltage: 600V
· RoHS compliant
Technical Data
| Property | Test Method | Standard Value | |||
| Longitudinal Shrinkage | ASTM-D-2671 | -10%~+10% | |||
| Tensile Strength | ASTM-D-638 | ≥34.5MPa | |||
| Elongation at Break | ASTM-D-638 | ≥150% | |||
| Heat shock <300, 4 hrs> | ASTM-D-2671 | No cracking, dripping or flowing | |||
| Elongation at Break after Aging | ASTM D 638 250℃×168h | ≥50% | |||
| Dielectric voltage withstand | UL224 | 2500V, 60sec, no breakdown | |||
| Volume Resistivity | ASTM D876 | ≥1×1013 Ω·cm | |||
| Flammability | VW-1 | Pass |
Product Dimensions
| Size | As Supplied | After Recovery | Standard Packing | ||
| Inch | mm | Min.Inner Diameter(mm) | MAX. ID(mm) | Wall Thickness | M/PC |
| (mm) | |||||
| 3/64 | 1.2 | 1.2 | 0.6 | 0.25±0.05 | 1.22 |
| 1/16 | 1.6 | 1.6 | 0.8 | 0.25±0.05 | 1.22 |
| 3/32 | 2.4 | 2.4 | 1.2 | 0.25±0.05 | 1.22 |
| 1/8 | 3.2 | 3.2 | 1.6 | 0.25±0.05 | 1.22 |
| 3/16 | 4.8 | 4.8 | 2.4 | 0.25±0.05 | 1.22 |
| 1/4 | 6.4 | 6.4 | 3.2 | 0.3±0.08 | 1.22 |
| 3/8 | 9.5 | 9.5 | 4.8 | 0.3±0.08 | 1.22 |
| 1/2 | 12.7 | 12.7 | 6.4 | 0.3±0.08 | 1.22 |
| 3/4 | 19.1 | 19.1 | 9.5 | 0.43±0.08 | 1.22 |
| 1 | 25.4 | 25.4 | 12.7 | 0.48±0.08 | 1.22 |
| 1 1/2 | 38.1 | 38.1 | 19.1 | 0.51±0.08 | 1.22 |
| 2 | 50.8 | 50.8 | 25.4 | 0.58±0.08 | 1.22 |
