MWT

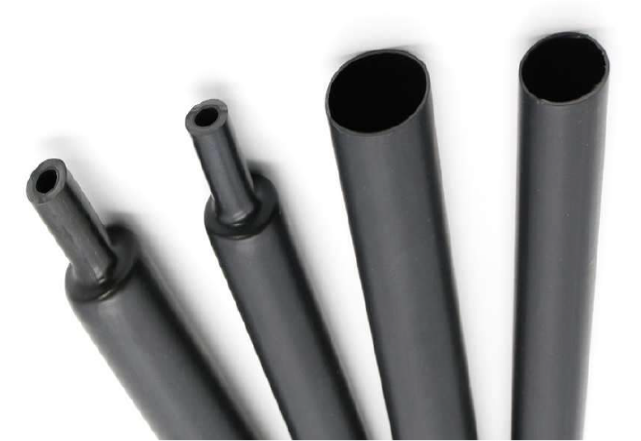

Medium Wall Adhesive-lined Polyolefin Heat Shrink Tubing

Material: Polyolefin and hot-melt adhesive

Features:

· 3:1 shrink ratio
· Flame retardant (out jacket only)
· High resistance to impact and abrasion
· Continuous operating temperature: -45℃-125℃
· Full shrink temperature:125℃

Technical Data

Property	Test Method	Standard
Tensile strength	ASTM D 2671	≥10.4MPa
Elongation	ASTM D 2671	≥200%
Tensile strength after aging	158℃×168h	≥7.3MPa
Elongation after aging	158℃×168h	≥100%
Dielectric strength	IEC 60243	≥15kV/mm
Volume resistivity	IEC 60093	≥1*1014Ω·cm

·Tubing withouot adhesive is available upon request

Product Dimensions

Size(mm)	As supplied	After recovery （mm）				Standard Packing(m/pc)
mm	Inner Diameter Min(mm)	Max. Inner Diameter	Jacket Thickness	Adhesive Thickness	Total Wall Thickness
10.2/3	10.2	3	1.4±0.20	0.35±0.15	1.75±0.30	1.22
16/5	16	5	1.5±0.20	0.40±0.20	1.9±0.30	1.22
19.1/5.6	19.1	5.6	2.0±0.20	0.45±0.15	2.45±0.40	1.22
25/8	25	8	2.0±0.20	0.45±0.15	2.45±0.40	1.22
28/9	28	9	2.0±0.20	0.5±0.2	2.6±0.40	1.22
35/10.2	35/	10.2	2.2±0.20	0.5±0.2	2.7±0.40	1.22
38.1/12	38.1	12	2.2±0.20	0.5±0.2	2.7±0.40	1.22
43.2/12.7	43.2	12.7	2.2±0.25	0.5±0.2	2.7±0.40	1.22
52.1/16	52.1	16	2.3±0.25	0.5±0.2	2.8±0.45	1.22
55/16	55	16	2.3±0.25	0.5±0.2	2.8±0.45	1.22
63/19	63	19	2.5±0.25	0.5±0.2	3.0±0.45	1.22
75/22	75	22	2.6±0.25	0.5±0.2	3.0±0.45	1.22
85/25	85	25	2.8±0.35	0.5±0.2	3.3±0.45	1.22
95/29	95	29	3.1±0.45	0.6±0.2	3.7±0.5	1.22
115/34	115	34	3.1±0.45	0.6±0.2	3.7±0.5	1.22
140/42	140	42	3.1±0.45	0.6±0.2	3.7±0.5	1.22
160/48	160	48	3.1±0.45	0.6±0.2	3.7±0.5	1.22
180/58	180	58	3.1±0.45	0.6±0.2	3.7±0.5	1.22
200/60	200	60	3.1±0.45	0.6±0.2	3.7±0.5	1.22
