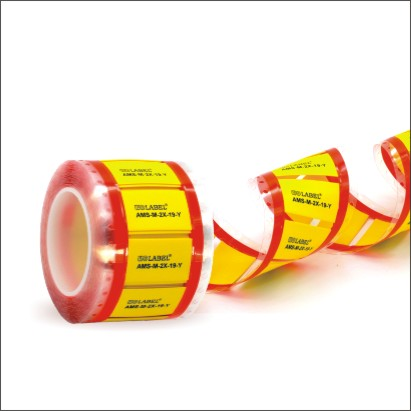

Military Identification Sleeves
Material: Polyolefin
Application:
AMS marker sleeves are designed to meet the wire and cable permanent marking needs. It is made of durable and flame retardant heat shrinkable polyolefin, and radiation cross-linked by high energy electronic beam.
Features:
· 3:1 shrink ratio
· Flame retardant
· Continuous operating temperature: -55℃-135℃
· Full shrink temperature:135℃
Technical Data
| Property | Test Method | Standard Value | |||
| Tensile Strength | ASTM-D-2671 | ≥10.4MPa | |||
| Elongation at Break | ASTM-D-2671 | ≥200% | |||
| Tensile Strength after Aging | 175℃×168h | ≥7.3MPa | |||
| Elongation at Break after Aging | 175℃×168h | ≥100% | |||
| Longitudinal Shrinkage | ASTM-D-2671 | -5%~+5% | |||
| Dielectric Strength | ASTM D149 | ≥19.7kV/mm | |||
| Volume Resistivity | ASTM D876 | ≥1×1014 Ω·cm | |||
| Flammability | ASTM D 2671 C method | VW-1 | |||
| Voltage withstand | UL224, 2500V, 60S | No breakdown | |||
| Heat shock | UL224 250℃×4h | No cracks, flowing or dripping |

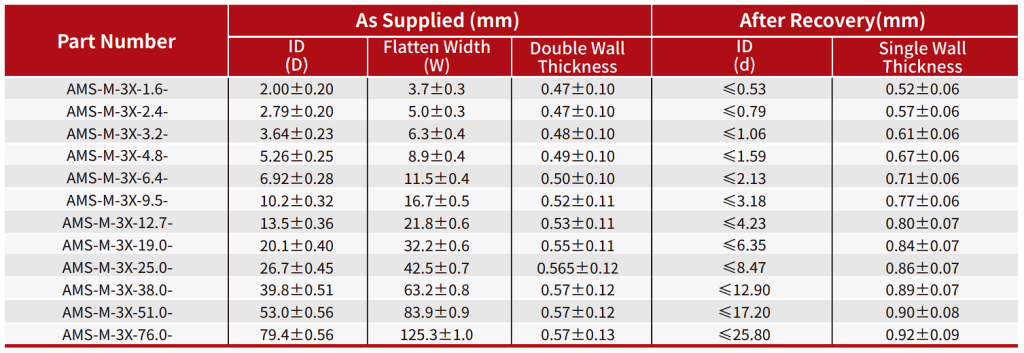

Product Dimensions
