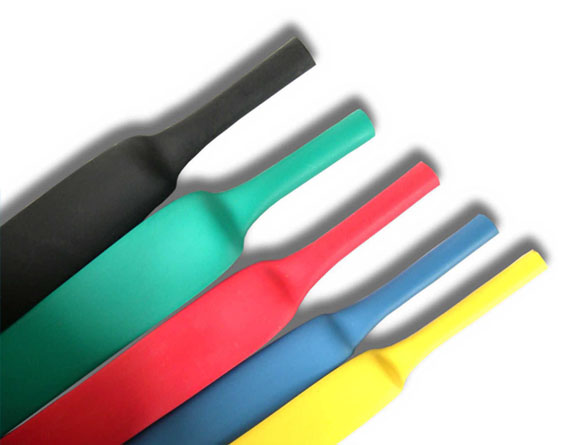

SWT125-2X

Universal 125℃ Heat Shrink Tubing

Material: Polyolefin

Features:

· 2:1 shrink ratio
· Flexible, flame-retardant (VW-1)
· Operating temperature range:  -55℃~125℃
· Full shrink temperature: 125℃
· Rating voltage: 600V
· RoHS compliant
· 3:1 shrink ratio is available upon request

Technical Data

Property		Test Method		Standard Value
Tensile Strength		ASTM-D-2671		≥10.4MPa
Elongation at Break		ASTM-D-2671		≥200%
Tensile Strength after Aging		158℃×168h		≥7.3MPa
Elongation at Break after Aging		158℃×168h		≥100%
Longitudinal Shrinkage		ASTM-D-2671		-5%~+5%
Dielectric Strength		IEC 60243		≥15kV/mm
Volume Resistivity		IEC 60093		≥1×10 Ω·cm
Flammability		ASTM D 2671 C method		VW-1

Product Dimensions

Size		As Supplied (mm)	After Recovery(mm)		Standard Packing
Inch	mm	Inner Diameter	MAX. ID	Wall Thickness	m/spool
3/64	0.8	1.1±0.2	0.5	0.22	200
1/16	1	1.5±0.2	0.65	0.28	200
	1.5	2.0±0.2	0.85	0.32	200
3/32	2	2.5±0.2	1	0.35	200
	2.5	3.0±0.2	1.3	0.38	200
1/8	3	3.5±0.2	1.5	0.4	200
	3.5	4.0±0.2	1.8	0.42	200
	4	4.5±0.2	2	0.45	200
3/16	4.5	5.0±0.2	2.3	0.5	200
	5	5.5±0.2	2.5	0.55	100
1/4	6	6.5±0.2	3	0.55	100
5/16	7	7.5±0.3	3.5	0.55	100
	8	8.5±0.3	4	0.6	100
3/8	9	9.5±0.3	4.5	0.6	100
	10	10.5±0.3	5	0.6	100
	11	11.5±0.3	5.5	0.6	100
1/2	12	12.5±0.3	6	0.6	100
	13	13.5±0.3	6.5	0.65	100
	14	14.5±0.3	7	0.65	100
5/8	15	15.5±0.4	7.5	0.7	100
	16	16.5±0.4	8	0.7	100
	17	17.5±0.4	8.5	0.7	100
3/4	18	19.0±0.5	9	0.8	100
	20	21.0±0.5	10	0.8	100
	22	23.0±0.5	11	0.8	100
1	25	26.0±0.5	12.5	0.9	50
	28	29.0±0.5	14	0.9	50
1 1/4	30	31.5±1.0	15	0.95	50
	35	36.5±1.0	17.5	1	50
1 1/2	40	41.5±1.0	20	1	50
	45	46.5±1.0	22.5	1	25
2	50	≥50	25	1	25
	60	≥60	31	1	25
	70	≥70	36	1.1	25
3	80	≥80	41	1.2	25
	90	≥90	46	1.2	25
4	100	≥100	51	1.2	25
5	120	≥120	60	1.3	25
6	150	≥150	76	1.3	25
8	180	≥180	91	1.46	25
